Network Adapter Cards and Cabling: Optimizing Network Performance
Importance of Network Adapter Cards
The primary function of a network adapter card (NIC) is to enhance network performance and minimize the time required to transfer data packets across a network. The key to achieving optimal performance is selecting the fastest NIC compatible with your network type.
🔹 Example: If your Wi-Fi network supports 802.11b/g, it’s best to use an 802.11g card for faster speeds.
Once data moves through the OSI model and reaches the Physical Layer, it must be transmitted through a physical medium—either cables or wireless signals.
✔ NICs prepare data for transmission.
✔ Cables or wireless channels carry data to its destination.
However, simply plugging in a network cable isn’t enough. The cabling you choose must support both network architecture and topology.
Types of Network Cabling
There are four main types of cabling methods:
1️⃣ Coaxial Cable (Coax)
Coaxial cable consists of:
✔ Copper center conductor (for data transmission)
✔ Plastic insulator
✔ Braided metal shield (to reduce interference)
✔ Outer protective jacket (PVC or plenum-rated for safety)
🔹 Plenum-Rated Coating: Used in ventilation spaces to prevent toxic gas emissions in case of fire.
🔹 Common Uses:
-
Ethernet 10Base2 cabling (also known as “Thin Ethernet”).
-
Secure BNC connectors (Bayonet Nut Connector) with a twist-lock mechanism.
-
Some older networks use vampire taps to connect stations to the main cable.
💡 Pros: Durable, resistant to interference.
❌ Cons: Less flexible, more expensive than twisted-pair cables.

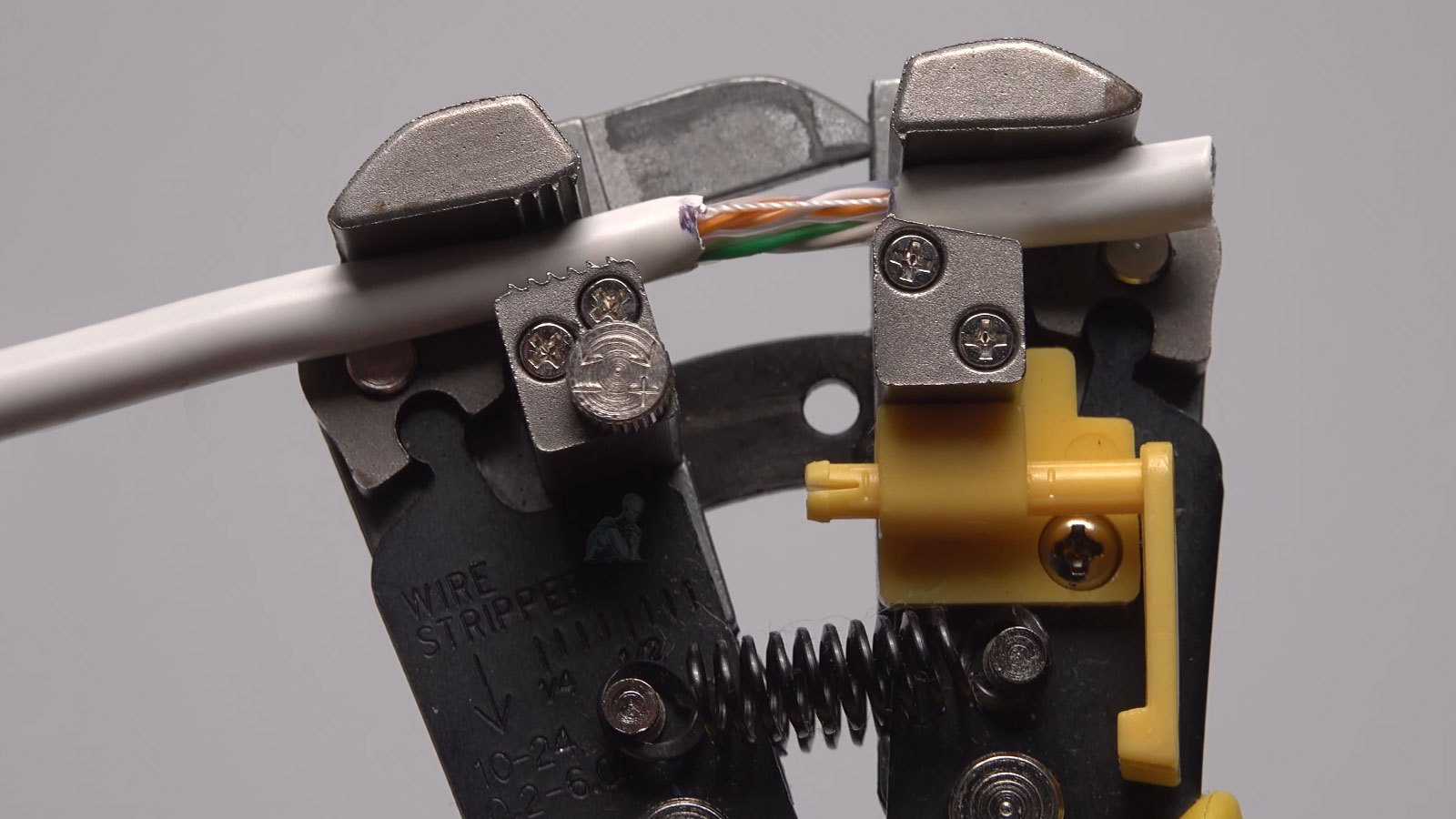

2️⃣ Twisted-Pair Cable (STP & UTP)
Twisted-pair cables are the most common due to their affordability and flexibility. They consist of multiple pairs of twisted wires inside an insulated jacket.
Types of Twisted-Pair Cables:
✔ Shielded Twisted-Pair (STP): Has extra foil shielding to minimize electrical interference.
✔ Unshielded Twisted-Pair (UTP): Lacks shielding but is widely used in Ethernet networks.
UTP Cable Categories & Speeds:
| Category | Max Speed | Max Distance | Use Case |
|---|---|---|---|
| Cat 5e | 1 Gbps | 100 meters | Basic Ethernet networks |
| Cat 6 | 1 Gbps (up to 10 Gbps at short distances) | 100 meters | High-performance networks |
| Cat 6a | 10 Gbps | 100 meters | Data centers and backbone connections |
🔹 Recommendation: If setting up a new network, use Cat 6 or Cat 6a for better speed and future-proofing.
💡 Pros: Flexible, cost-effective, widely used.
❌ Cons: UTP is more susceptible to interference compared to STP.
3️⃣ Fiber-Optic Cable
Fiber-optic cables use light pulses to transmit data, making them:
✔ Extremely fast (up to 100 Gbps).
✔ Immune to electromagnetic interference.
✔ Capable of long-distance data transmission.
🔹 Common Uses:
-
Backbone connections between buildings or data centers.
-
High-speed Internet connections.
💡 Pros: Fastest data transfer, secure, long-distance transmission.
❌ Cons: Expensive, requires specialized equipment.
4️⃣ Wireless Networks
Wireless networks eliminate the need for physical cables and transmit data via radio waves.
✔ Common Wireless Standards:
| Wi-Fi Standard | Max Speed | Frequency |
|---|---|---|
| 802.11b | 11 Mbps | 2.4 GHz |
| 802.11g | 54 Mbps | 2.4 GHz |
| 802.11n | 600 Mbps | 2.4/5 GHz |
| 802.11ac | 1 Gbps+ | 5 GHz |
| 802.11ax (Wi-Fi 6) | 9.6 Gbps | 2.4/5 GHz |
💡 Pros: No cables, convenient for mobile devices.
❌ Cons: Slower than wired connections, susceptible to interference.
Final Thoughts
Choosing the right network adapter card and cabling is crucial for maximizing network efficiency.
✔ For wired networks: Use Cat 6 or fiber-optic cables for high-speed, interference-free performance.
✔ For wireless networks: Upgrade to Wi-Fi 6 for the best speeds and stability.
✔ For legacy systems: Coaxial cables are still used in specific industrial applications.
