Understanding Network Protocols: TCP/IP

What Are Network Protocols?

Network protocols act as a common language for computers to communicate. A protocol is a set of rules that define how data is transmitted and received over a network. For two computers to exchange data, they must use the same protocol, just like humans need to speak the same language to understand each other.

While there are many network protocols, two of the most commonly used are: ✔ TCP/IP (Transmission Control Protocol/Internet Protocol)
✔ NetBIOS (Network Basic Input/Output System)

Among these, TCP/IP is the dominant protocol powering the Internet and most modern networks.

What Is TCP/IP?

TCP/IP is a suite of protocols that allows computers to communicate over the Internet and private networks. While it is named after its two core protocols—Transmission Control Protocol (TCP) and Internet Protocol (IP)—it consists of multiple protocols working together.

Why Is TCP/IP So Popular?

✔ Universal Standard: Used globally across all network devices and the Internet.
✔ Cross-Platform Compatibility: Works on Windows, Linux, macOS, and Unix.
✔ Scalability & Reliability: Can handle small local networks (LANs) and large global networks (WANs).
✔ Supports Multiple Applications: Enables services like email, file transfer, and web browsing.

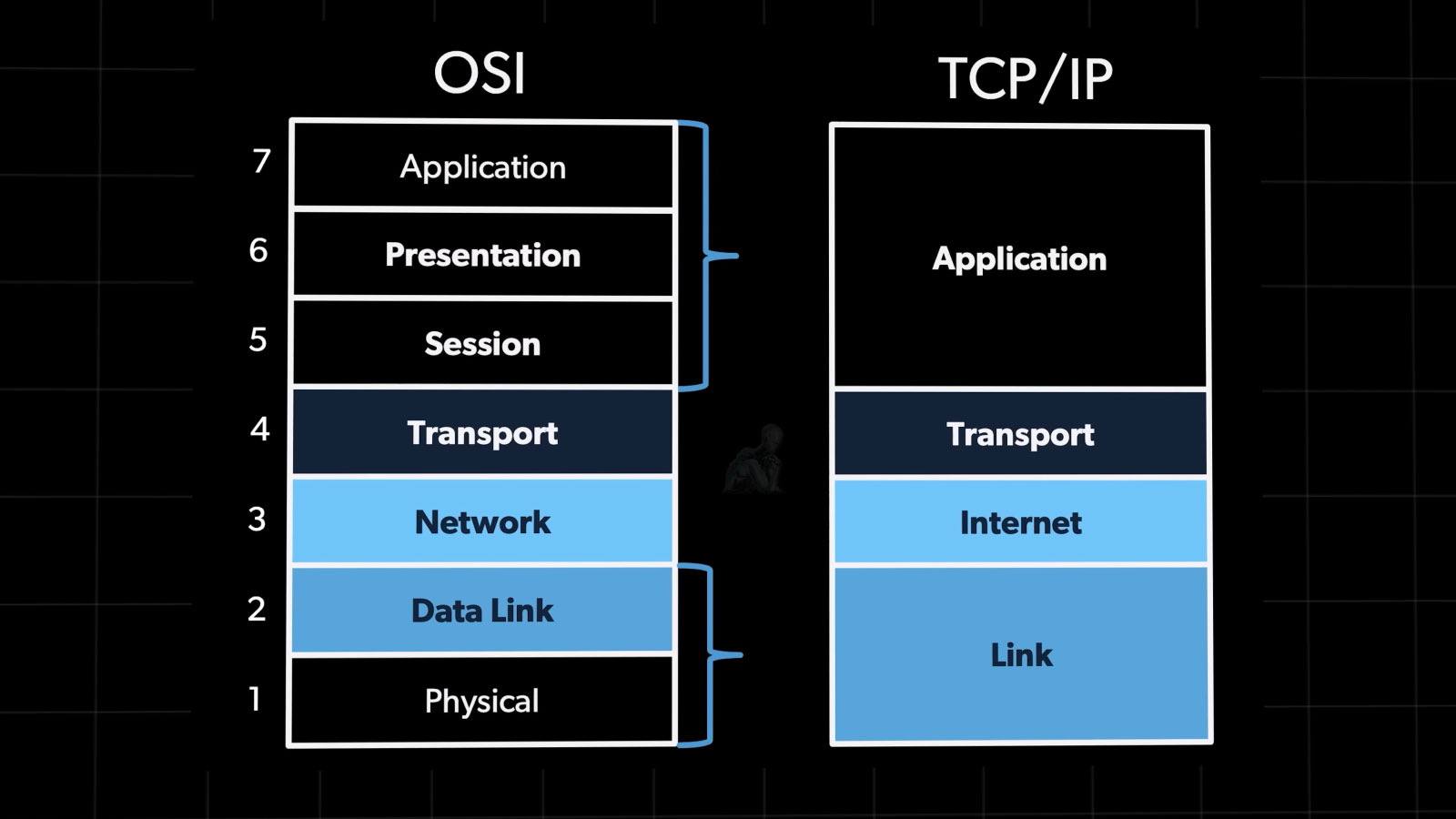

The TCP/IP Model vs. OSI Model

TCP/IP is structured around the Department of Defense (DOD) model, which is similar to the OSI (Open Systems Interconnection) model but consists of four layers instead of seven.

TCP/IP Model	OSI Model Equivalent	Function
Application Layer	Application, Presentation, Session	Handles user interaction and data formatting (e.g., HTTP, FTP, SMTP)
Transport Layer	Transport	Manages end-to-end communication (e.g., TCP, UDP)
Internet Layer	Network	Handles addressing and routing (e.g., IP, ICMP, ARP)
Network Access Layer	Data Link, Physical	Manages physical connections and data transmission (e.g., Ethernet, Wi-Fi)

🚀 Key Takeaway: The TCP/IP model is simpler and more widely used than the OSI model for real-world networking.

Key Protocols in the TCP/IP Suite

1️⃣ Application Layer Protocols

These protocols are responsible for delivering internet-based services: ✔ HTTP (Hypertext Transfer Protocol) – Used for web browsing.
✔ FTP (File Transfer Protocol) – Transfers files between computers.
✔ SMTP (Simple Mail Transfer Protocol) – Sends emails.
✔ POP (Post Office Protocol) – Retrieves emails from a server.

2️⃣ Transport Layer Protocols

The two primary protocols at this layer determine how data is sent: ✔ TCP (Transmission Control Protocol) – Ensures reliable data delivery by verifying that packets arrive in order and without errors (connection-oriented).
✔ UDP (User Datagram Protocol) – Faster but less reliable as it does not guarantee packet delivery (connectionless).

3️⃣ Internet Layer Protocols

Protocols at this layer manage addressing and routing of data: ✔ IP (Internet Protocol) – Assigns unique IP addresses to devices and routes data between networks.
✔ ICMP (Internet Control Message Protocol) – Sends error messages (e.g., used in ping command).
✔ ARP (Address Resolution Protocol) – Maps IP addresses to MAC addresses for communication on local networks.

4️⃣ Network Access Layer

This layer does not have specific protocols but defines how devices physically connect using: ✔ Ethernet – Common wired networking standard.
✔ Wi-Fi – Wireless networking standard.
✔ Token Ring – Older networking method used in legacy systems.

How IP Addressing Works

Every device on a TCP/IP network needs a unique IP address to communicate.
✔ IPv4 Address Example: 192.168.1.1
✔ IPv6 Address Example: 2001:0db8:85a3:0000:0000:8a2e:0370:7334

There are two ways to assign IP addresses: 1️⃣ Static IP Addressing – Manually assigned by a network administrator.
2️⃣ Dynamic IP Addressing (DHCP) – Automatically assigned by a DHCP server.

Hierarchical Structure of IP Addresses

IP addresses follow a hierarchical format, similar to telephone numbers:

Area code (e.g., 192.168.1) – Identifies the network.
Local number (e.g., .57) – Identifies the specific device.

This structure allows efficient routing of data across different networks, enabling Internet communication.

Final Thoughts

TCP/IP is the foundation of modern networking and the primary protocol used for Internet communication. Understanding its structure and core functions can help you set up, troubleshoot, and manage networked systems efficiently.

Key Takeaways

✔ TCP/IP is the most widely used protocol suite for the Internet and business networks.
✔ It consists of four layers that correspond to the OSI model.
✔ Core protocols include IP, TCP, UDP, HTTP, FTP, and SMTP.
✔ Every device requires a unique IP address to communicate on a TCP/IP network.
